1.5 بوصة - 3 بوصة
Ruixin
التمساح انتزاع سليكلين
سبائك الصلب وسبائك النيكل
الصين باوجى
عملية سلكية وعملية سليكلاين
معيار

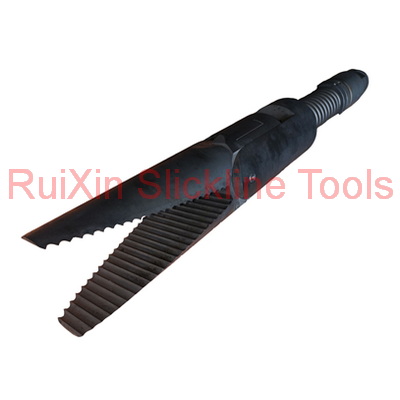

Alligator Grab Slickline is designed to retrieve damaged or broken objects from within the well bore.
Size | Fishing | connection |
1.5" | 1.375 | 15/16-10UN |
2" | 1.375 | 15/16-10UN |
2.5" | 1.75 | 1-1/16-10UN |
3" | 1.75 | 1-1/16-10UN |
Alligator grab shear a pin allowing the two opposing Jaws of the Alligator Grab to snap closed & clamp tightly onto any object caught between them. The Jaws of the Alligator Grab are serrated to prevent objects from slipping free once the Jaws are closed. The grip of the Alligator Grab Jaws can be varied by adjusting the spring tension prior to running in the hole.
After use, remove grease, debris and sand in time to prevent tool movement from being blocked.
Alligator Grab Slickline is designed to retrieve damaged or broken objects from within the well bore.
Size | Fishing | connection |
1.5" | 1.375 | 15/16-10UN |
2" | 1.375 | 15/16-10UN |
2.5" | 1.75 | 1-1/16-10UN |
3" | 1.75 | 1-1/16-10UN |
Alligator grab shear a pin allowing the two opposing Jaws of the Alligator Grab to snap closed & clamp tightly onto any object caught between them. The Jaws of the Alligator Grab are serrated to prevent objects from slipping free once the Jaws are closed. The grip of the Alligator Grab Jaws can be varied by adjusting the spring tension prior to running in the hole.
After use, remove grease, debris and sand in time to prevent tool movement from being blocked.
